Trijicon RMR footprint Standard

15. Februar 2025

Wéi eng Routpunktviséierer funktionéiere mat der Trijicon-Montage? Kënnt Dir en Holosun 507C op där selwechter Plack installéieren wéi en Trijicon RMR red dot Visier? Mir behandelen déi komplett Kompatibilitéit vum Foussofdrock an dësem Artikel.

Foussofdrock-Kompatibilitéit erkläert

Wat bedeit e „Foussofdrock“? De Begrëff Foussofdrock bezitt sech op eng Struktur vun den Ausspuerungen an de Schrauflächer op der Basis vum opteschen Apparat.

A wat bedeit et, wann d'Foussofdrocke kompatibel sinn? All optescht Visier huet eng Basis fir d'Montage. D'Basis besteet aus Stëfter op verschiddene Positiounen a Lächer fir Schrauwen, déi fir d'Fixéierung vum Visier un der Montage benotzt ginn.

Wann zwee Viséierer déiselwecht Basis fir d'Montage benotzen, soe mir, datt si dee selwechte Foussofdrock deelen. An dësem Artikel weise mir, wéi eng Routpunktviséierer dee selwechte Foussofdrock deelen.

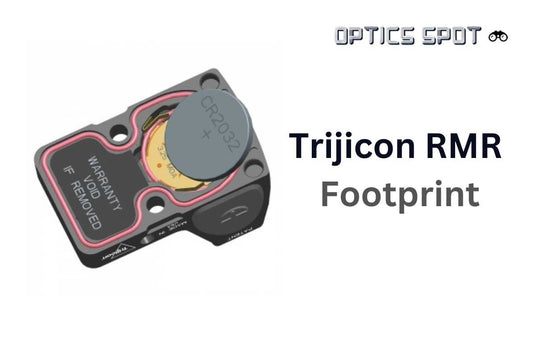

Trijicon RMR Foussofdrock-Muster

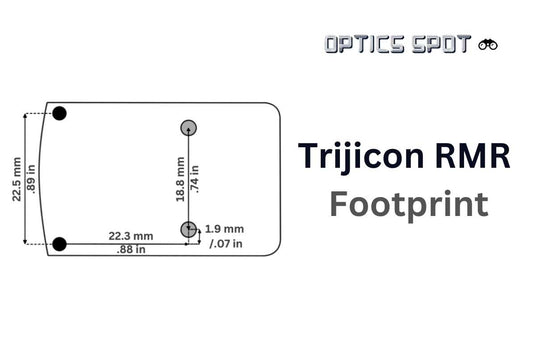

De RMR Foussofdrock besteet aus zwou Ausspuerungen op der viischter Säit an zwou Schrauflächer an der Mëtt vum Viséier.

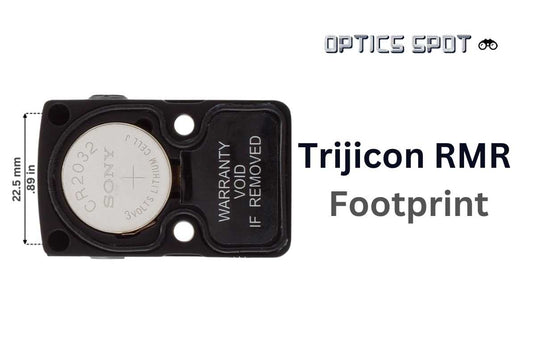

Déi viischt Ausspuerunge leien 22,5mm / 0.89 Zoll vunenee ewech, all eenzel an engem Eck op der viischter Säit vum Viséier positionéiert. D'Positioun vun dësen zwou Ausspuerunge entsprécht der Positioun vun de Pins op der Montagefläch vun all Montage fir dëse Standard.

D'Schrauflächer sinn ongeféier an der Mëtt vum opteschen Apparat positionéiert. Si dénge fir d'Befestegung vum Viséier op der Montage. Dës zwou Schrauflächer leien 18,8mm / 0.74 Zoll vunenee ewech.

D'Schrauwen, déi fir dës Schrauflächer benotzt solle ginn, sinn ëmmer am Package mam Viséier abegraff.

Kompatibel Routpunktvisierer

RMR ass ee vun de meescht verbreeten Foussofdrecker um Maart.

Hei drënner fannt Dir déi komplett Lëscht vu Viséierer, déi mam Trijicon Foussofdrock funktionéieren.

Osight C [rout]

(11)

€223,95 EUR

Op Lager

Detailer uweisen
Vector Optics Frenzy 1x22x26 MOS MRS Routpunktvisier

(8)

€159,00 EUR

Op Lager

Detailer uweisen
Holosun 507 Comp [rout]

(4)

€456,00 EUR

Op Lager

Detailer uweisen
Vector Optics Frenzy 1x22x26 MOS Routpunktvisier

(4)

€169,00 EUR

Op Lager

Detailer uweisen
Holosun 507 Comp [gréng]

(2)

€520,00 EUR

Op Lager

Detailer uweisen
Osight X [rout]

€279,95 EUR

Op Lager

Detailer uweisen
Holosun 507C X2 [rout]

(3)

€412,00 EUR

Op Lager

Detailer uweisen
Vector Optics Frenzy-X 1x19x28 GenII

(1)

€179,00 EUR

Op Lager

Detailer uweisen

Wéi montéiert een e Routpunktvisier mam Trijicon RMR Foussofdrock

Dat hänkt dovun of, op wéi engem Apparat Dir et montéiere wëllt.

Wëllt Dir et op enger Picatinny Montage installéieren? Also op enger Waff mat Picatinny Schinn? Da musst Dir no enger Picatinny Montage mat RMR Foussofdrock sichen.
Oder wëllt Dir et op enger Pistoul montéieren? A wäert d'Pistoul Optics Ready sinn (mat engem Pistoulschlitten-Ausschnëtt fir red dot)? Da musst Dir no enger Routpunktmontage mat RMR Foussofdrock sichen.
Oder ass et eng Standardpistoul ouni esou en Ausschnëtt? Da musst Dir no enger Optikplack mat RMR Foussofdrock sichen.

Aner Foussofdrock-Standarden

Et gi vill verschidde Basen fir Routpunktvisierer, mee déi aner meescht verbreet sinn déi folgend:
