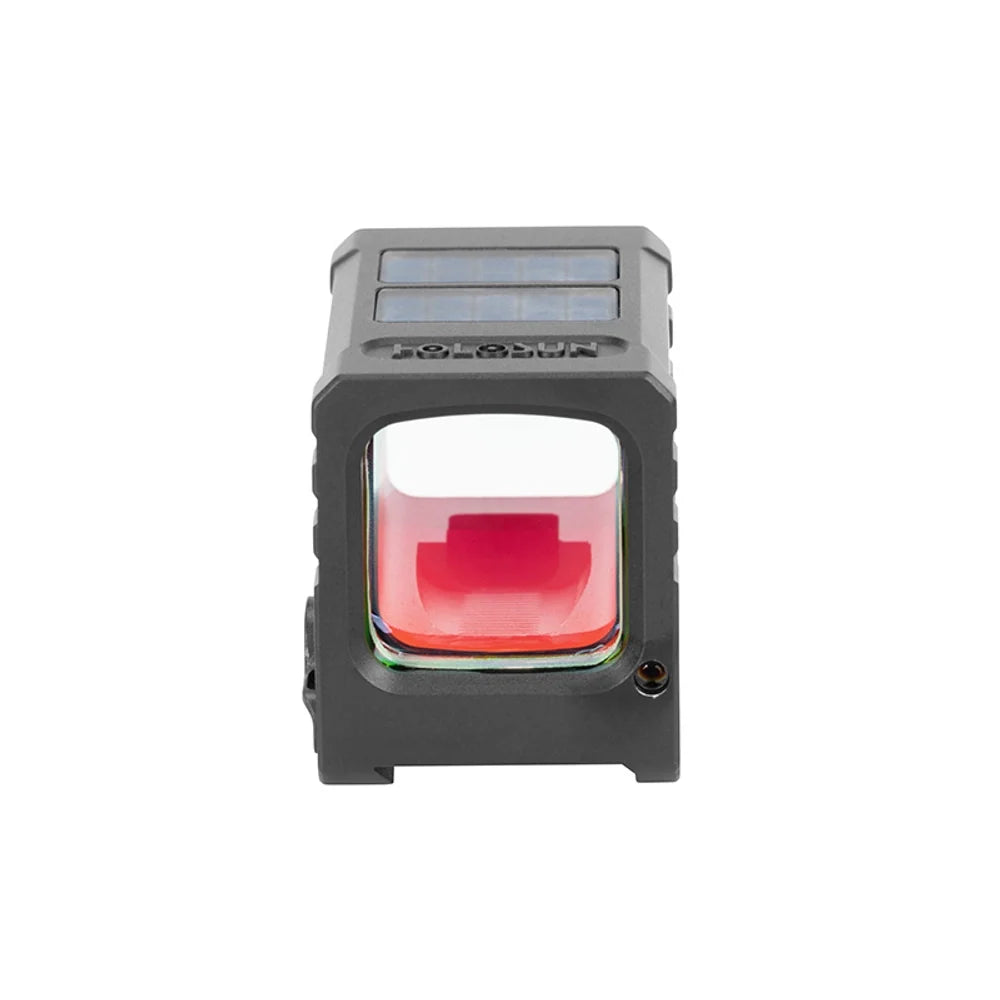

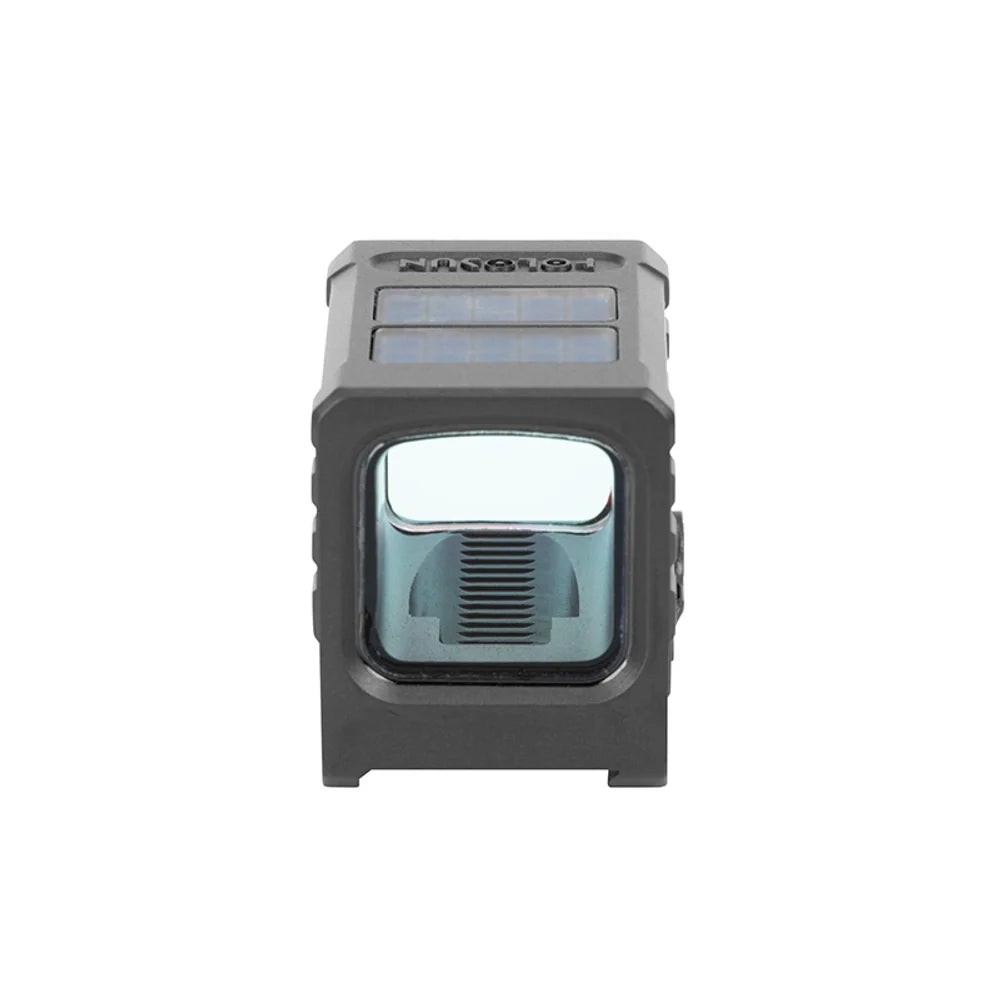

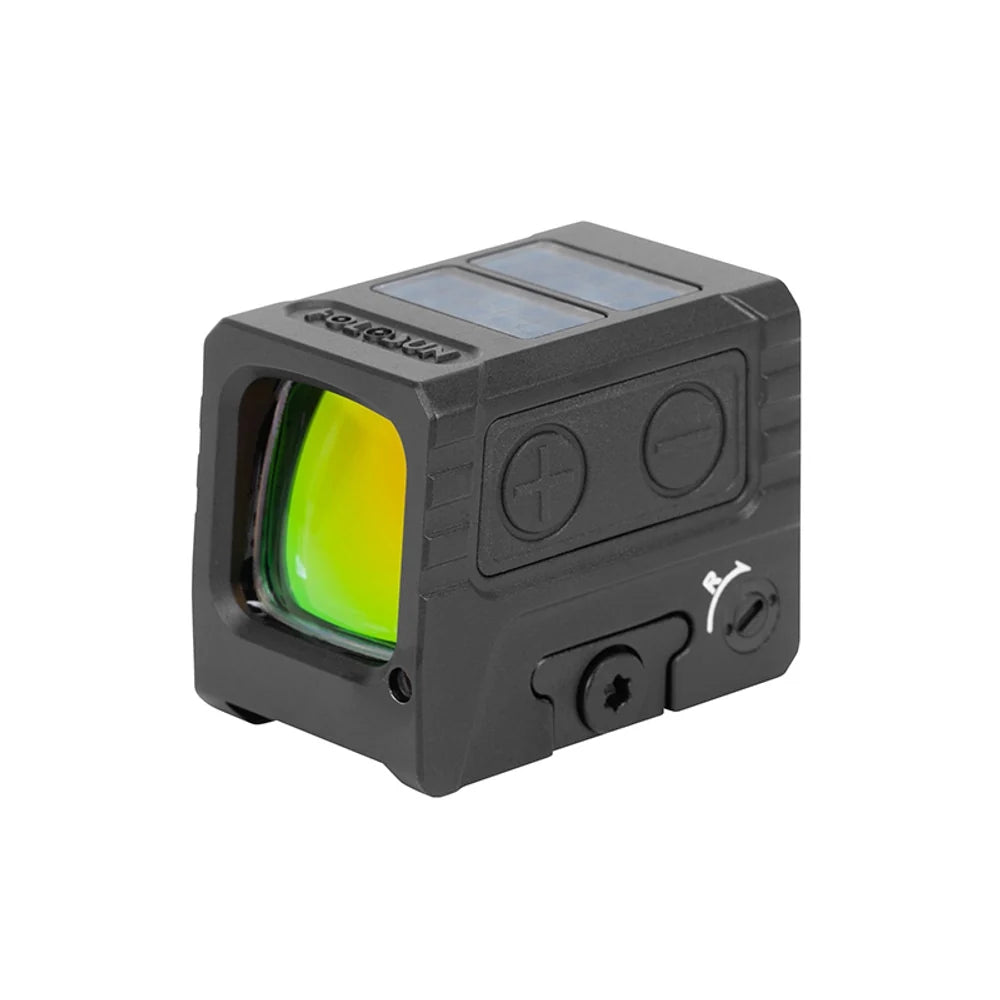

Holosun AEMS Micro [red]

This red dot uses the Holosun 509T footprint standard, but in the box is also included adapter to Shield RMSc footprint.

Essential info

• Footprint standard: Holosun 509T footprint standard [with RMSc adapter]
• Reticle: 2 MOA dot & 32 MOA circle [red]
• Window size [height x width]: 18.0 x 18.0 mm [0.71 x 0.71"]
• Total dimensions [length x width x height]: 38.1 x 25.4 x 30.5 mm [1.5 x 1.0 x 1.2"]

Holosun AEMS-MICRO-RD is the smallest member of the AEMS family: a true micro enclosed reflex sight with a square 0.71 x 0.71 inch window, a multi-reticle system and solar-assisted brightness. It mounts on the 509T footprint and ships with an RMSc adapter plate.

Micro size, square sight picture

The 0.71 x 0.71 inch window is as tall as it is wide. On an optic this small that matters more than raw window area, because the vertical room is what lets you find the dot on the draw instead of fishing for it.

Acro footprint, RMSc plate in the box

The AEMS Micro sits on the 509T interface, so Acro-pattern plates and mounts fit it directly. An RMSc-to-AEMS-MICRO adapter plate is included in the box, which opens up slim-slide pistols cut for the RMSc footprint.

One optic, three aiming styles

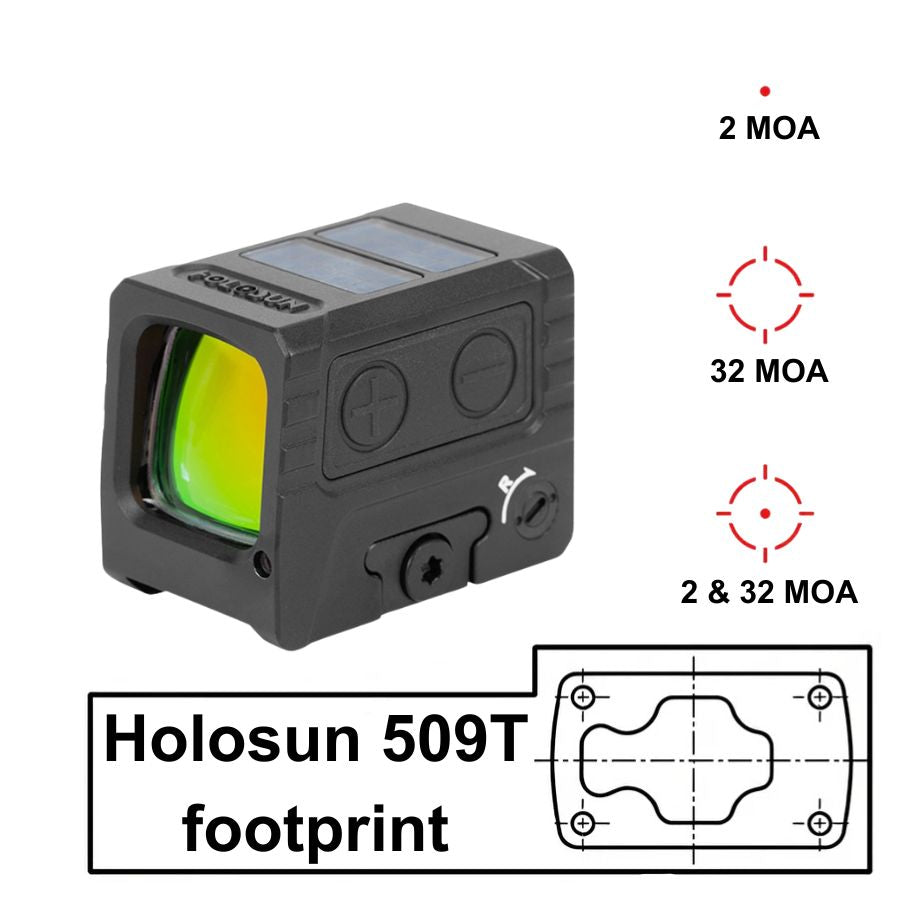

The Multi-Reticle System switches between a precise 2 MOA dot, a fast 32 MOA circle, or a combined circle-dot reticle. You choose precision or speed without changing optics.

Enclosed emitter, sealed against the weather

The fully enclosed emitter system keeps debris, moisture and environmental exposure away from the LED, which is what keeps the reticle on the glass in rain, snow and dust.

Smart brightness with solar backup

A forward-facing light sensor matches the reticle to ambient light, and an integrated solar panel supplements battery power to keep reticle performance consistent. Memory and Lockout Mode prevent accidental adjustments.

Always ready, always efficient

Shake Awake powers the optic up the moment it senses movement and shuts it down when idle. With up to 100,000 hours on a CR1620 in a side-loading tray, the battery is a non-issue and swapping it never costs you your zero.

Key advantages

• True micro enclosed optic with a square 0.71 x 0.71 inch window
• Holosun 509T footprint, RMSc adapter plate included
• Multi-Reticle System: dot, circle, or circle-dot
• Fully enclosed emitter design
• Automatic brightness with Solar Failsafe backup
• Shake Awake for extended battery life

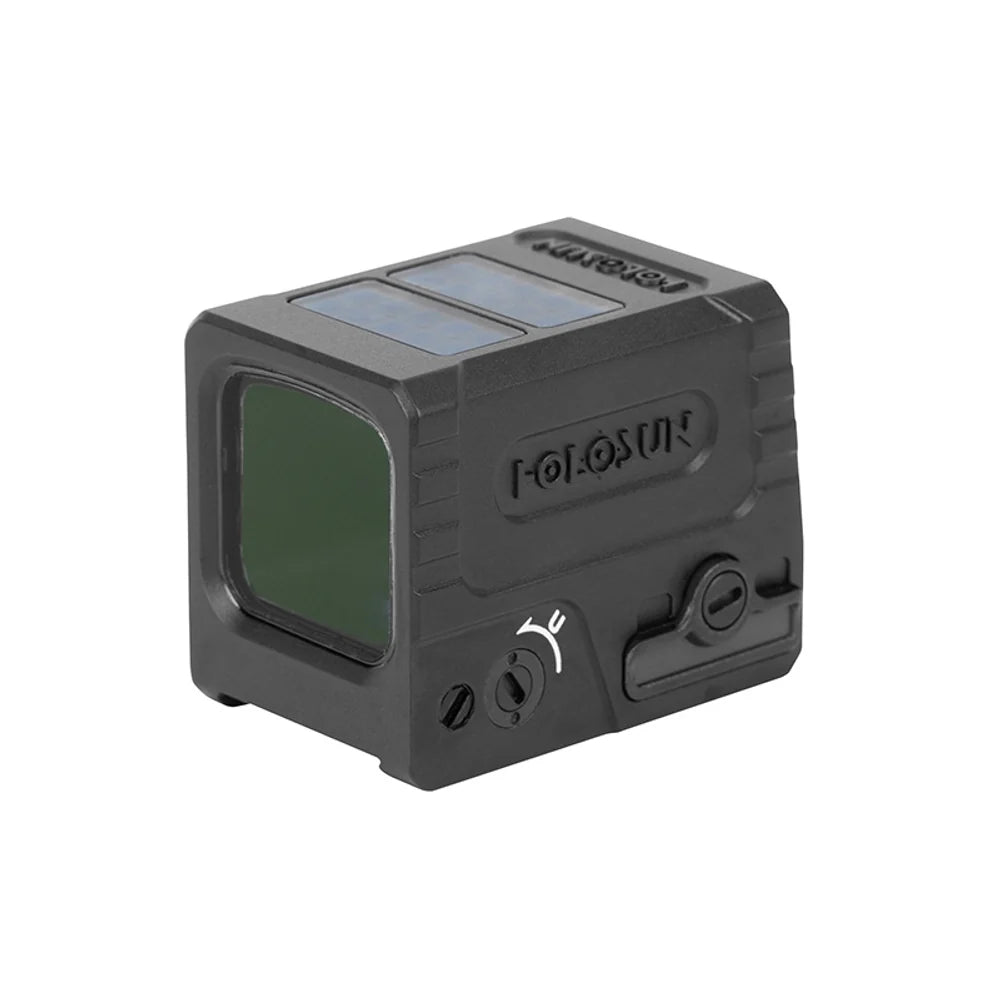

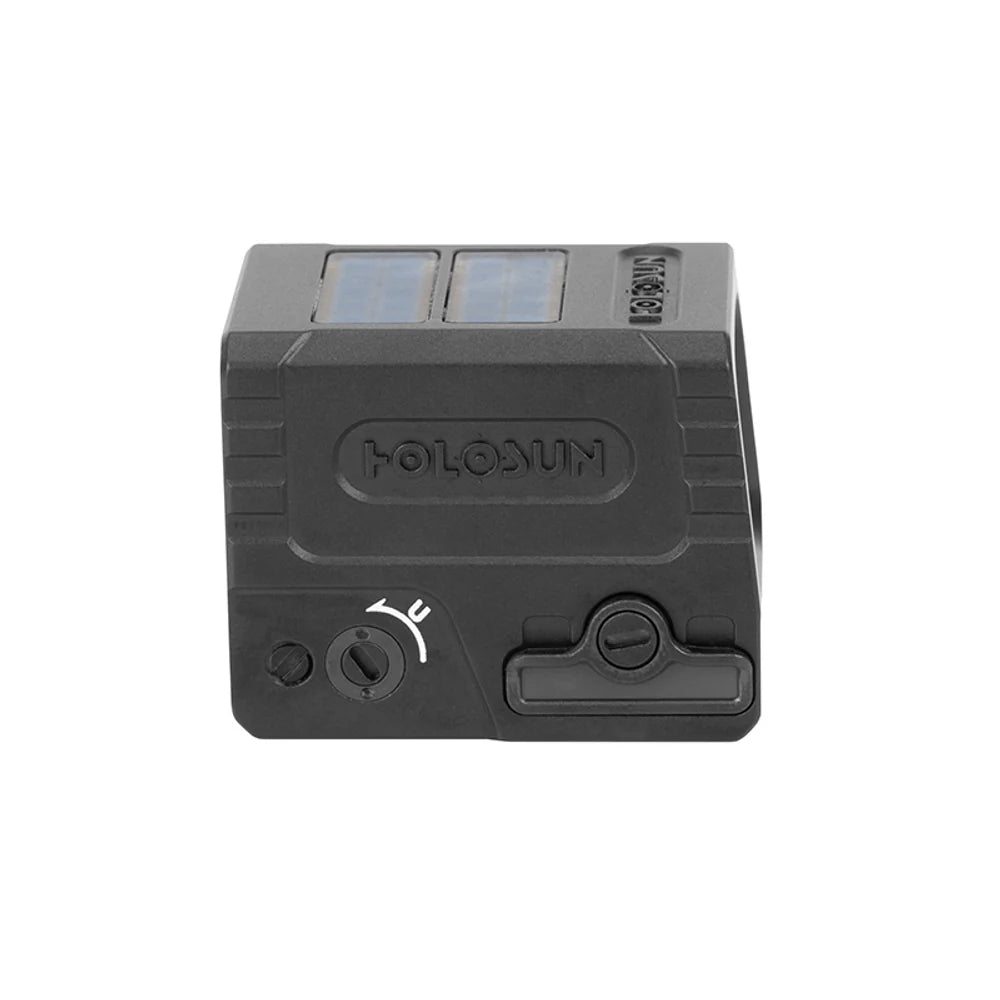

• Side battery tray - no need to remove the optic
• 7075-T6 aluminium housing with hard anodized finish

Specification

• Magnification: 1x
• Reticle: 2 MOA Dot / 32 MOA Circle / Combined
• Reticle Color: Red
• Parallax: Free
• Eye Relief: Unlimited
• Lens Coating: Multi-Coated
• Power Source: Solar & Battery
• Battery Type: CR1620
• Battery Life: Up to 100,000 hours
• Brightness Settings: 12 (8 daylight + 4 night vision)
• Housing Material: 7075-T6 Aluminum
• Finish: Hard Anodized
• Adjustment per Click: 1 MOA
• Windage & Elevation Range: ±30 MOA
• Water Resistance: IPX8
• Vibration Resistance: 5000G
• Weight: approx. 60 g
